Maximum brightness, high performance

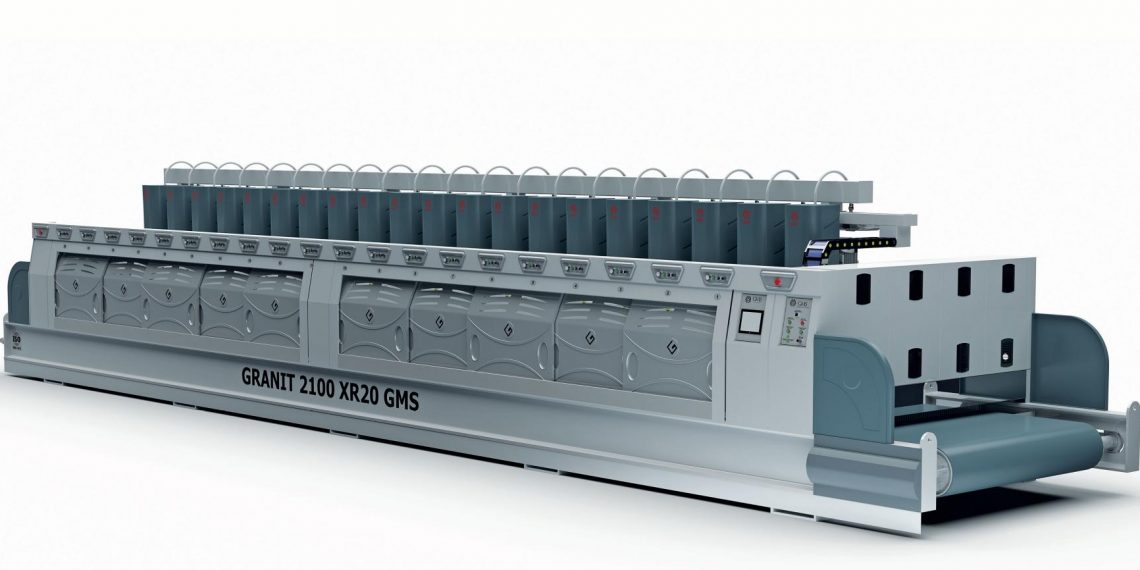

GRANIT 2100XR polishing machine is the basic machine in the polishing lines recommended by GMS. The machine is equipped with an industrial PC that allows all the operative, diagnostic and statistical functions required by the users. The machine meets all the demands of the users as well as providing a nice and easy use.The new granite polishing machine GRANIT 2100XR offers the highest levels of efficiency with respect to the superior polishing quality currently available on the market. The machine can easily polish plates up to 2100 mm. GRANIT 2100XR, consisting of 20 polishing heads, weighs approximately 40 tons. The GRANIT 2100XR is available in all series from 18-20-22-24 head, single or double bridge thanks to the special series Technology. It allows easy and intuitive use by the latest generation electronic operator. The heads that are the beating heart of the machine have been redesigned to increase both the workable thickness and to ensure a high performance during the new processing. The GRANIT 2100XR, which meets all expectations, is of high quality and fast in production. GRANIT 2100XR provides significant reductions in time while reducing the need for personnel. with the loading and unloading robots.
Daily production schedule can be planned
The GRANIT 2100XR is highly efficient and fast in daily production. It saves energy with its intelligent motor and systemic wiping heads. The wiping heads are prepared to move through the sensors, which warn that the stone is coming in at the entrance of the machine. Heads do not move unless they see the approaching stone and this eliminates unnecessary energy consumption. With the GRANIT 2100XR, it is possible to pre-program how many m² of stone can be polished per day.
PLC controlled automatic system provides ease in loading and unloading process
PLC provides ease in loading and unloading of granite plates with controlled automatic system. The plate-loading unit is equipped with an absorbent retainer frame comprising a hydraulic system for unstacking the plates. The loading unloading unit is equipped with strong vacuums that hold the plate during the slope stage. Both of the machines are operated by a redactor motion system on the rails fixed to the ground. All materials used in the GRANIT 2100XR are products that pass through the inspection and testing phase. GMS starts a comprehensive test and trial phase starts when the operation is finished. As a result of the test and trial phases, the machines are shipped.
The GRANIT 2100XR can be remotely fixed in case of all kinds of problems.
GMS Machinery representatives state that they can solve all kinds of mechanical or software problems by a remote connection mode and they can solve all non-mechanical software & program problems with remote intervention. The representatives say that, if the problem is mechanical and requires a change of parts, the service personnel takes the required piece to the factory where tha machine operates and re-runs tha machined quickly. As stated by the representatives all GMS machines can be controlled by remote connection system.
